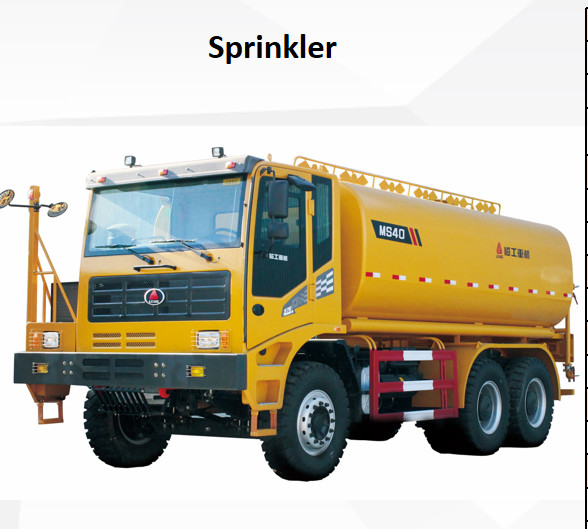

LGMG Sprinkler MS25 MS40 MS50

  • LGMG Sprinkler MS25 MS40 MS50
Place of Origin CHINA
Brand Name LGMG
Model Number RT136
Minimum Order Quantity 1 UNIT
Delivery Time 25 DAYS
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Leave a Message
Product Description

LGMG Sprinkler MS25 MS40 MS50



车型(Model) MS25 MS40 MS50
整备质量(Curb weight) 16500(kg) 27600(kg) 287000(kg)
总质量(Total weight) 41500(kg) 67600(kg) 687000(kg)

整车尺寸

(Overall dimension)

 9780×2560×3670(mm) 10600×3600×4150(mm) 12600×3600×4250(mm)
发动机(Engine) 　 　 　
型号(Model) WEICHAI WP10.340E32 WEICHAI WD12G420E211 WEICHAI WD12G430E310
功率(Power) 340(hp) 420(hp) 430(hp)
变速箱(Transmission) 　 　 　
型号(Model) FAST 9JSD150A FAST 7DS200 FAST 7DS200
车桥(Axle) 　 　 　
前后桥(Front & Rear) 9.5+16+16(t) 19+25+25(t) 20+25+25(t)
轮胎(Tire) 　 　 　
尺寸(Size) 12.00R20 14.00-25-36PR 14.00-25-36PR
货箱容积(Container volume ) 　 　 　
水罐容积(Container volume) 25(m3) 40(m3) 50(m3)
洒水类型(Sprinkle type)

前水炮,后洒 (Front water canon,

Rear sprinkle )

前水炮,后洒 (Front water canon,

Rear sprinkle )

前水炮,后洒 (Front water canon,

Rear sprinkle )
水泵流量(Water pump flow) 50(m³/h) 50(m³/h) 50(m³/h)
