CHINA 6X4 Dumping truck LGMG brand CMT96 WITH WEICHAI EURO3 ENGINE 96T 35cbm bucket
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Curb Weight | 33500 Kg | Total Weight | 95000 Kg |
|---|---|---|---|
| Overall Dimensions | 9690×3830×4330mm | Approach / Departure Angle | 30° / 46° |
| Engine Model | Weichai WP13G530E310 | Displacement/ Emissions | 12.54L/ Euro III |
| Transmission (Auto Type) | Cat & Fast AUTO FC6A250PRT | Drive Type | 6x4 |
| Body Capacity-struck | 35m3 |
Product Description
CHINA 6X4 Dumping truck LGMG brand CMT96 WITH WEICHAI EURO3 ENGINE 96T 35cbm bucket
| Curb weight整备质量 | 33500 kg | Total weight总重 | 95000 kg | |||
| Max. speed最高车速 | 44 km/h | Drive type驱动 | 6x4 | |||
|
Body Capacity-struck 货箱(带挡板) |
With tailgate | 35m3 | Body Size 货箱尺寸 | with tailgate后门 |
5900x3400x1750mm; 16mm floor/10mm side;floor NM400/side NM360; rear 14mm |
|
| Overall dimensions 整车尺寸 | 9690×3830×4330mm | Approach / departure angle接近角,离去角 | 30° / 46° | |||
|
Min.turning diameter 最小转弯直径 |
≤24m | Min.Ground clearance最小离地间隙 | ≥370mm | |||
| Wheel Track轮距 | 2743/2636mm | Wheel base 轴距 | 3925+1750mm | |||
| Chassis Frame 车架 |
380 x 120 x (10+10) mm; Ladder frame width 1150mm; |
Fuel tank capacity /Hydraulic oil tank capacity 燃油箱,液压油箱容积 |
530L/135L | |||
| Engine Model发动机 | Model型号 | Weichai WP13G530E310 | 530Hp;6 cylinders electronically controlled directly fuel injectors tub-charger and inter-cooler; | |||
| Displacement/ Emissions排放及标准 | 12.54L/ Euro III | |||||
| rated speed额定转速 | 2100RPM | |||||
| Max.Torque最大扭矩 | 2300N.m | |||||
| Transmission (Auto Type)变速箱(自动) |
双特Cat & Fast AUTO FC6A250PRT(标配)； 可选艾利逊4800ORS(另外加价) |
|||||
| Steering system转向系统 | Full hydraulic steering system全液压转向 | |||||
| Axle车桥 | 25T+35T+35T | |||||
| Cab驾驶室 | Central cabin A/C 中置带空调 | |||||
| Tyre & Rim轮胎 | 16.00-25-36PR; 11.25-25; | |||||
|
Lifting cylinder；举升油缸 Body raise time at full loading;负载举升时间 Body lower time at unloading;卸载下降时间 |
Deppkaler 4TG-F196*4700; working pressure 22Mpa ≤30S; ≤25S; |
|||||
| Front leaf spring (thinckness*width*NOS*Main)前板簧 | 18*100*13*4 | |||||
| Rear leaf spring (thinckness*width*NOS*Main)后板簧 | 27*120*18*5 | |||||
| brake system制动系统 |
Wabco air braking with additional brake cooling system 30-inch dual chamber; working pressure 1Mpa; Air tank capacity 170L; Service brake; |
|||||

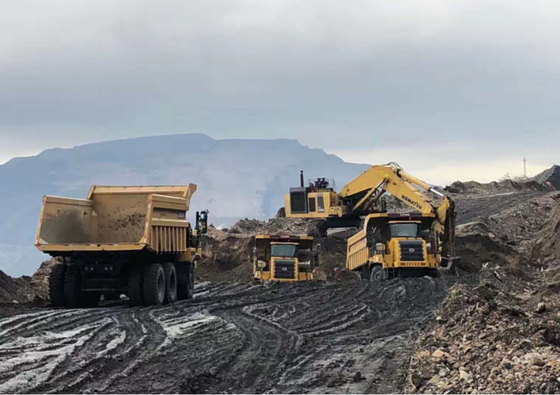

| Application(large tonnage, large tires, comfortable and efficient) | large open pit mines such as gravel, earth and stone mixed, large stone factory, open pit mine, non-ferrous metal mine | |||||

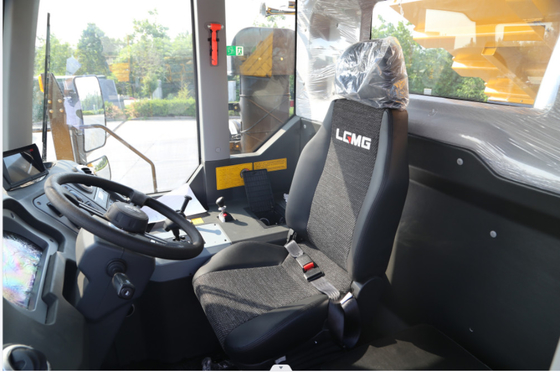

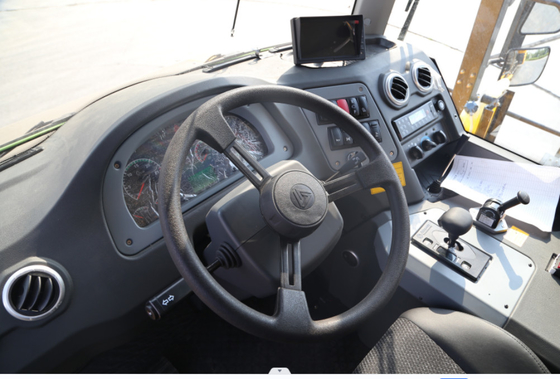

Ming Truck LGMG CMT96 CABIN INSIDE
