Mini Minilastare till salu
Product Details
Product Description

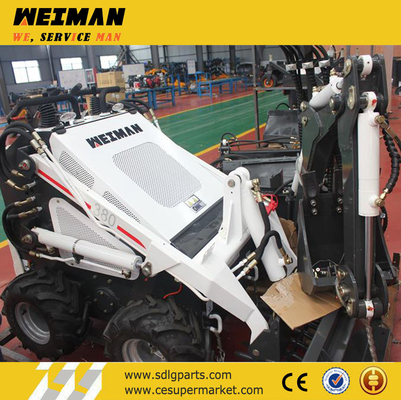

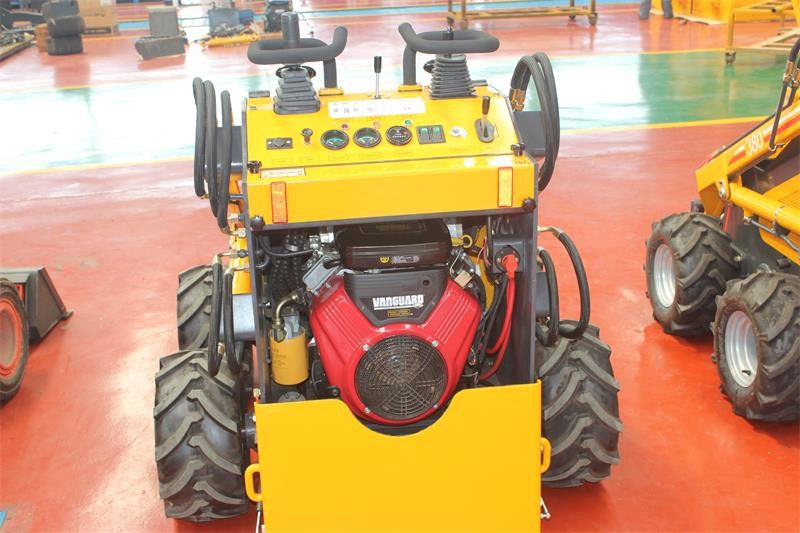

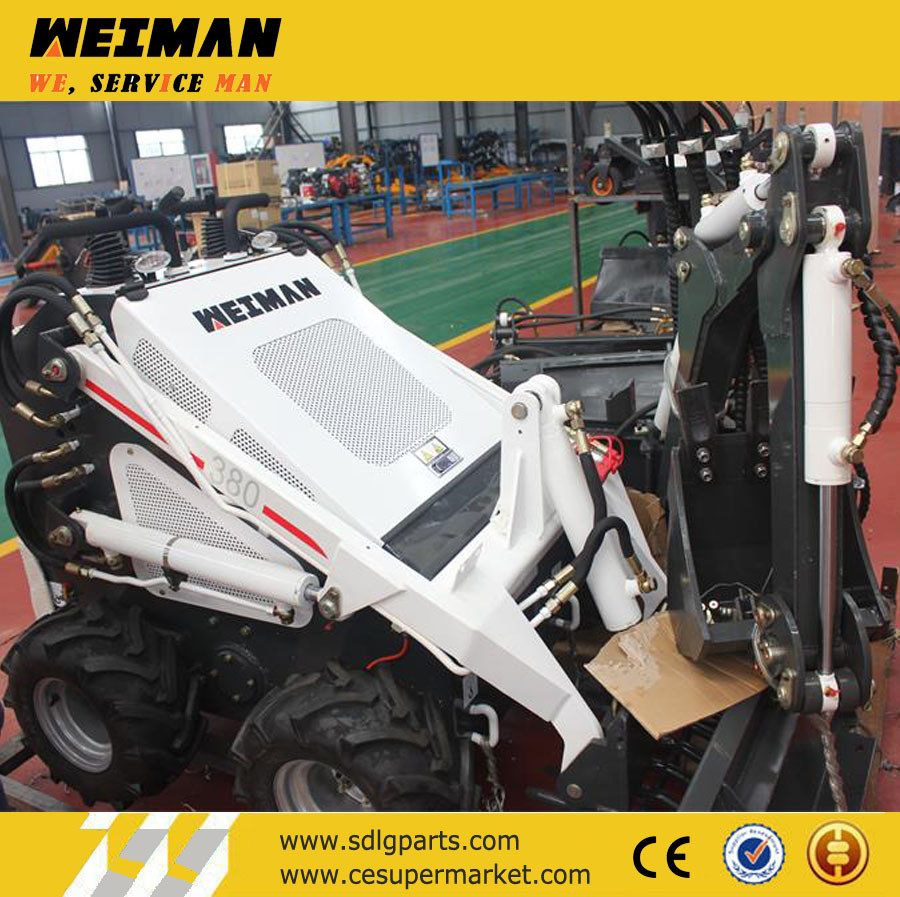

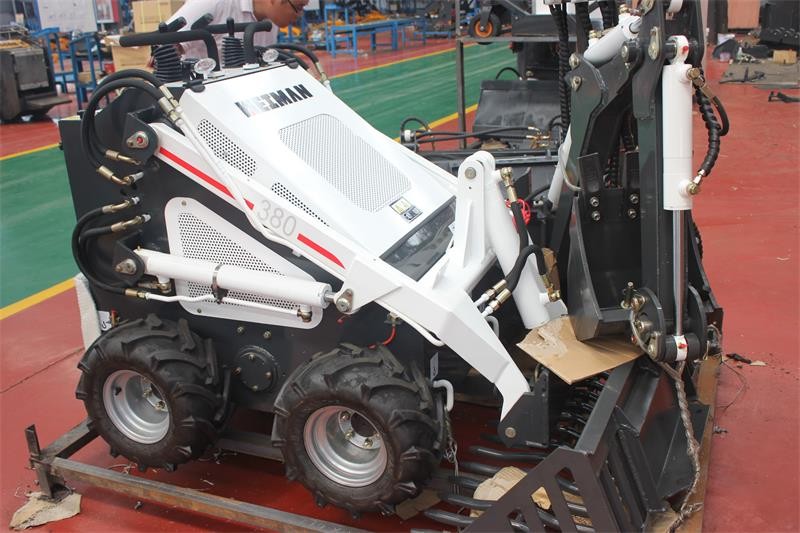

Mini Minilastare till salu
1. Engine: U.S Briggs& Stratton Engine, Gas, 23HP
2. Pump: Gear Pump
3.Valve: Italy Multi-way Valve
4. Tires: Engineer Tires. Optional: Solid Tires, Grass Tires, Crawler
6. Optional Configuration: Servo System.(Joystick)
7. Size: (mm)(L* W* H): 2206* 1160* 1233
|
Max pin height |
1884 |
|
Max Working Height |
2143 |
|
Max Dump height |
1488 |
|
Max Dump distance |
348 |
|
Total Height |
1233 |
|
Overall length with bucket |
2206 |
|
Overall Length without bucket |
1752 |
|
Bucket width |
980 |
|
Total width |
1160 |
|
Ground clearance(F) |
118 |
|
Wheel base |
636 |
|
Departure angle(α) |
11° |
|
Max Dumping angle (γ) |
30° |
|
Rollback of bucket on ground(θ) |
25° |
|
Mini Turn Radius |
1307 |
|
Rated power |
17kw(23hp) |
|
Rotating speed(rpm) |
3600 |
|
Noise(Db) |
<95 |
|
Pressure |
17 |
|
Raise |
4.27 |
|
Dump |
1.34 |
|
Lower |
3.31 |
|
Operating load |
200kg |
|
Bucket capacity |
0.15m³ |
|
Max lifting force |
375kg |
|
Travel speed |
0-5.5km/h |
|
Operating weight |
890kg |
