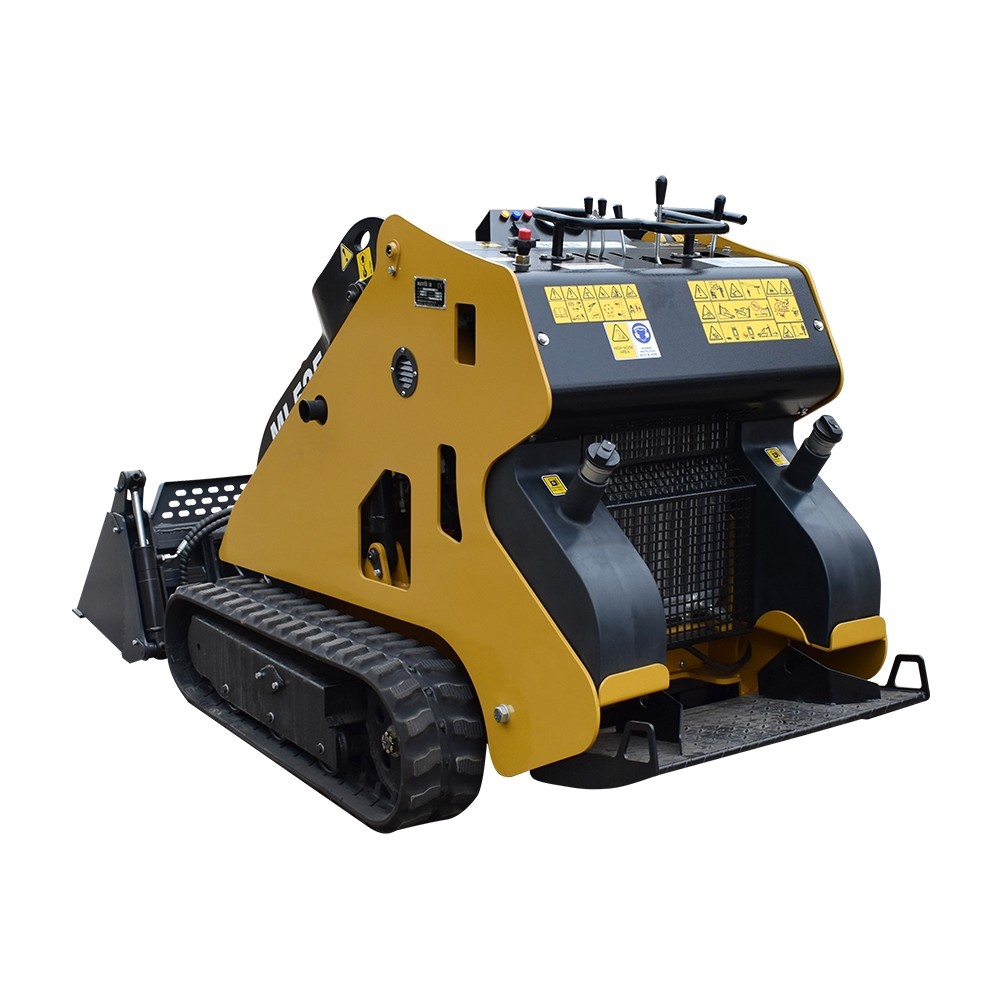

Compact Mini skid steer loader mini articulated wheel loader 25hp Japan engine Diesel

Compact Mini skid steer loader mini articulated wheel loader 25hp Japan engine Diesel

Factory showing

1: Specially customized main valve, generation combination, diversion function, boom floating function, mechanical operation is reliable, easy to repair and maintain.

2: Using the American PERMCO high-pressure gear pump, the flow can be combined and divided through the special main valve, and the system pressure is 21Mpa.

3: The US DANFOSS low-speed but torque wheel drive motor is adopted to strengthen the self-rescue function of the machine in muddy working conditions.

4: Equipped with two sets of assistive device control valves, it is convenient to expand auxiliary devices, and the flow rate can be adjusted.

5: The flow rate of auxiliary equipment can be adjusted between 0-45L/min

6: Adopt construction machinery testing methods and conduct strict thermal balance tests to ensure continuous, safe and reliable operation of the machine when the environment is 35°C.

7: Ergonomic optimization design is adopted, the climbing ability is calibrated at 16°, and the test test is 22°. The center of gravity of the whole machine is low, and the slope operation is safe and reliable.

8: Two sets of auxiliary equipment oil circuit and unloading circuit are equipped as standard, and more dual-function auxiliary equipment can be expanded without additional cost for auxiliary equipment control valve group.

Description

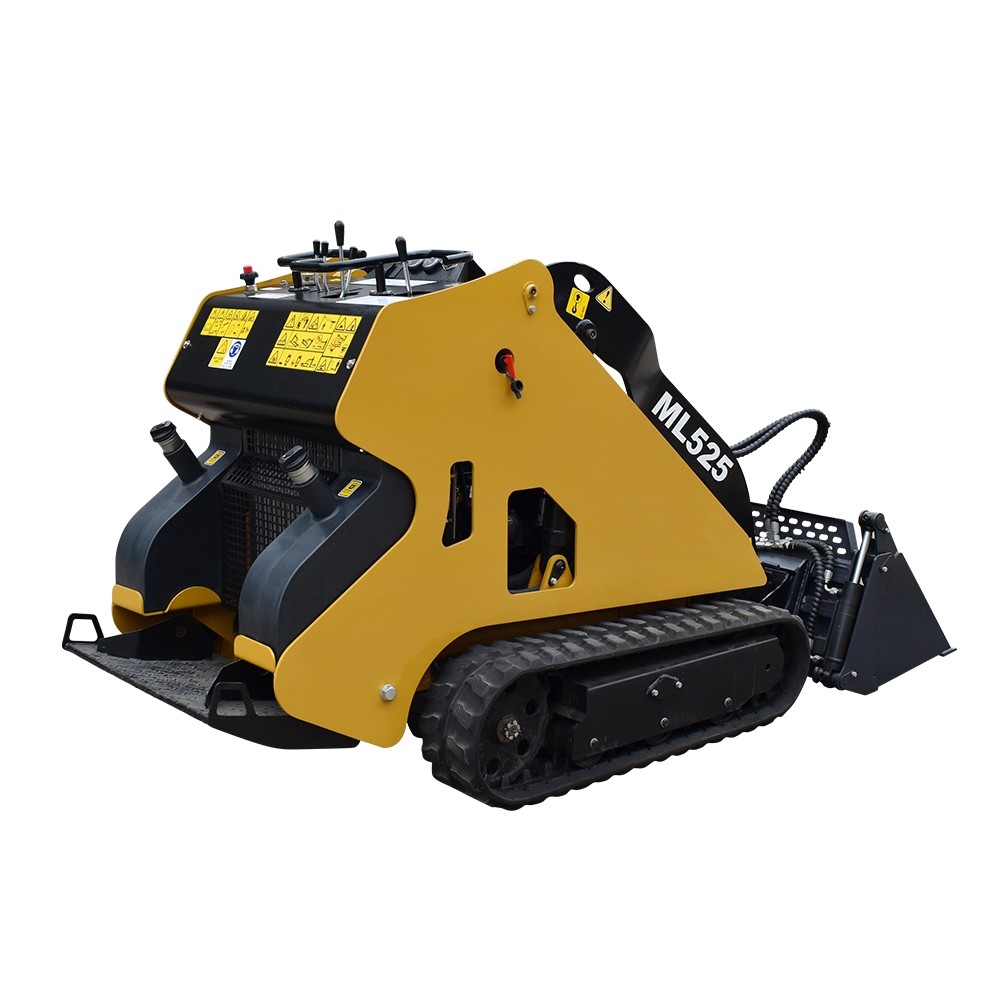

With a powerful Perkins diesel engine, the new ML525 model is a "little giant" that maneuvers easily in tight places and handles tough construction, agriculture and landscaping challenges with ease.

Machine

Operating weight 1.069 kg

Tip capacity 2.100 / 953 kg

Operating capacity 175 / 79.5 kg

Travel speed 3.5mph (5.6km/h)

Operation

Steering and Drive:direction and speed controlled by single joystick

Lifting and tilt: Raise/lower/and dump controlled by a dual-axis joyctick.

Transmission type: crawler type

Hydraulic

Hydraulic flow 54.8 l/min

Working hydrostatic pressure 175 bar

Hydraulic tank capacity 53 l

Standard Buckets

Standard buckets – width / volume-

Standard bucket 1.060 mm / 0,36 m³

4 in 1 bucket 1.100 mm / 0,45 m³

Dimensions

Overall Operating Height 1,524mm

Overall Height 1,524 mm

Ground Clearance to Chassis 169 mm

Overall Length 2, 589 mm w/42" bucket

Overall Length 1,956 mm (without bucket)

Wheelbase 940 mm

Rollback at Ground 27°

Dump Angle 37°

Overall Width 1,040 mm

Bucket Width 1,060mm

Engine

Manufacturer :KUBOTA

Diesel Engine type: 3 cyliner liquid-cooled

Power output max.25 hp /

Rated speed :3000 rpm/min

fuel capacity 9.0 gal / 47 L

Air cleaner :Heavy-duty dual element

Configurations

Attachments options

Packing by box ;LCL shipping or packing in container.
